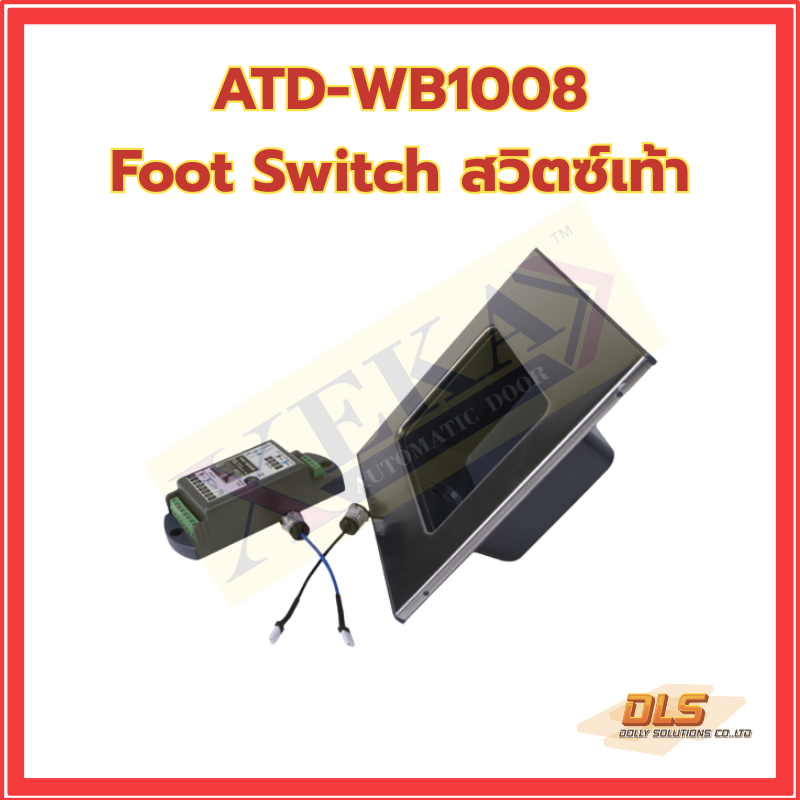

Foot Switch สวิตซ์เท้า ATD-WB1008

• Recommended installation height : 0.3 m height from the ground.
• Reaction time : relay output ≤45ms
• Supply power : AC/DC 12-36V
• Power consumption : 82mA
• Supervisory signal : 4.5S MA
• Signal direction : Indicator with red light when infrared ray emitted and received effectively. Indicator with green light when the infrared ray truncated by foot operated.
• Operation temperature : -20ºC~+55ºC
• Interference immunity : Sunlight 81000LUX
• Incandescent lamp : 36000LUX
• Electric Microwave : Consist with 89/336/CEE criteria
• Appearance dimensions :
  123(L)×50(W)×32(H)mm (Main controller)
  19mm×13mm (Electric eyes)
  186mm×175mm×53mm (Bracket)
• Output signal : Relay NO signal contact
• Total Weight : About 1000G

***เอกสารแนบข้อมูลเพิ่มเติม***

DLS XEKA-Catalog
