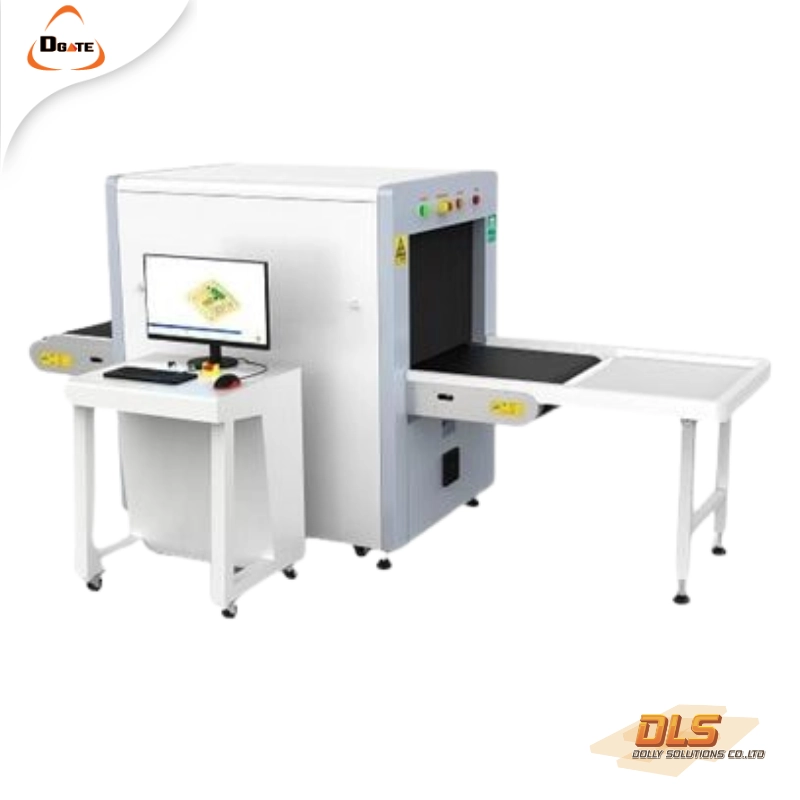

เครื่องสแกนกระเป๋า เครื่องเอ็กซ์เรย์กระเป๋าสัมภาระ X-Ray Baggage Scanner SE-AT6550C

• Tunnel size(mm) 659(L)*504(W)
• Conveyor Speed(m/s) 0.22
• Conveyor height(mm) 700
• Conveyor Max Load(kgs) 150
• X ray dose per each inspection ≤2.5 μGy
• X ray leakage <1μGy/h at any point 5 centimeters outside the external surface
• Penetration 30 mm steel

## Image System :
– X-ray Sensor L-Shaped Photodiode Array, 12bit deep
– Images process 24bit real time processing ,4colors analysis, Images displayed marked date and
ID No., Count the number of bags
– Image display High resolution of 1920*1080 pixel; Image Grey Level: 65536

## Operating Environment :
Operation temperature/Humidity 5℃-40℃ / 0%-90%(non-condensing)Storage Temperature/Humidity -20℃to 60℃ / 10%-90%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Options: 110-120V, 230-240V, 60Hz)

## X-ray Generator :
Anode Voltage 160 KV
Ray direction Upward
Cooling / Duty Cycle Sealed oil cooling /100%
