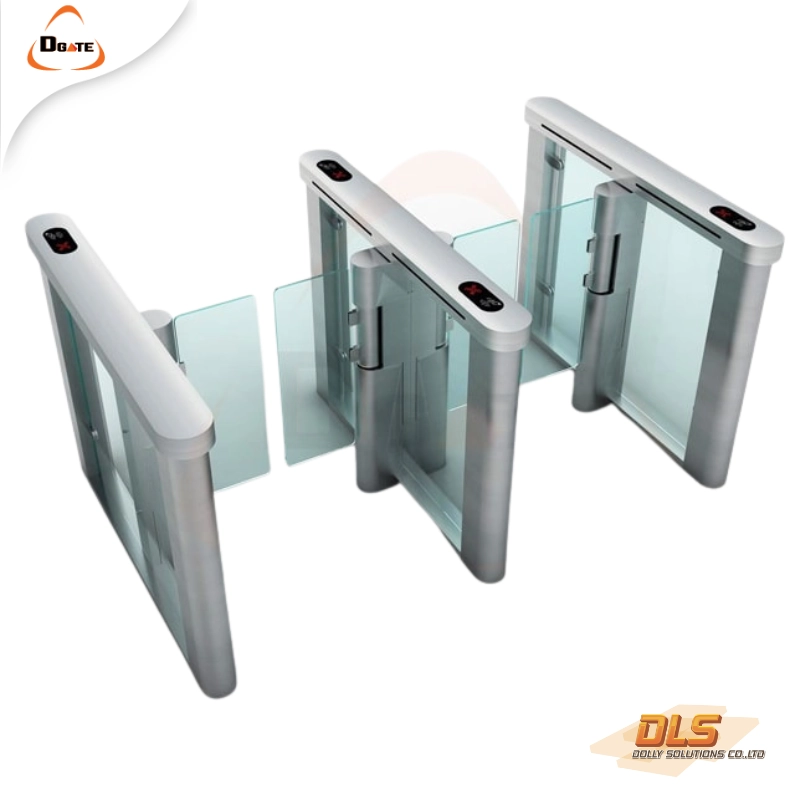

Swing Gate TS-H8008-4

• Framework : 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
• Finish : brushed surface, polishing surface
• Shell’s size (L*W*H) : 1600mm*160mm*1000mm (default)
• Swing arm material : Tempered glass or Acrylic (optional)
• Stretching out swing length : 260mm~600mm
• Power voltage : AC220V±10%, 50Hz±10%
• Driver motor : DC36 servo motor
• Main-board voltage : 12V DC
• In-built Infrared : 6 pairs/passageway
• Passing speed in normally open mode : 50 persons/min
• Passing speed in normally closed mode : 40 persons/min
• Passage Width : 600mm~1200mm

***One Movement ต่อคู่ / Two Movement ต่อเครื่อง***
